Steel Cord Conveyor Belt

Product Overview

Product Features

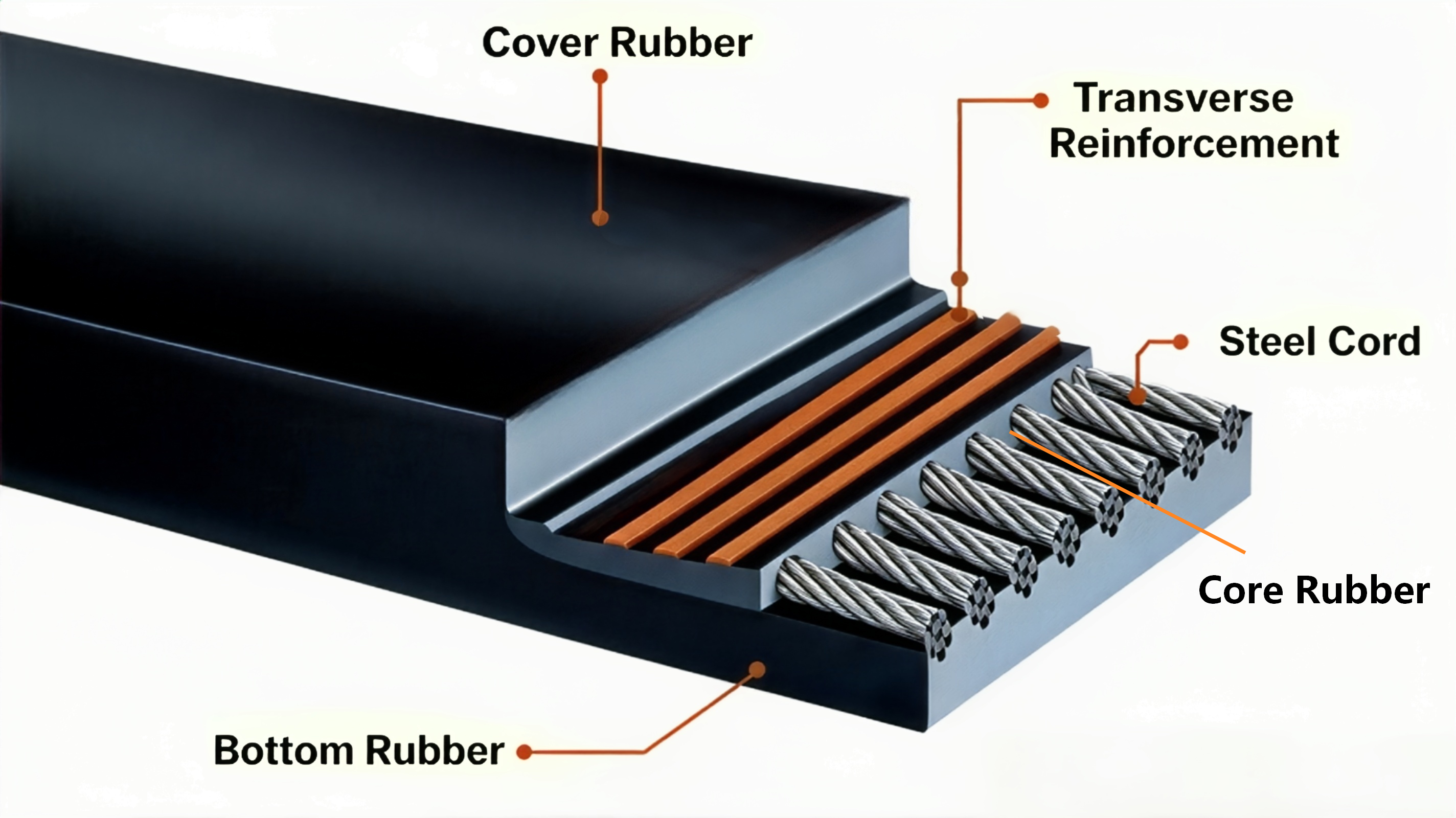

Steel cord reinforced conveyor belts deliver exceptional tensile strength with minimal stretch compared to fabric-reinforced belts. This characteristic makes them a dependable, cost-efficient option for conveyor systems featuring long conveying routes or high lifting heights.

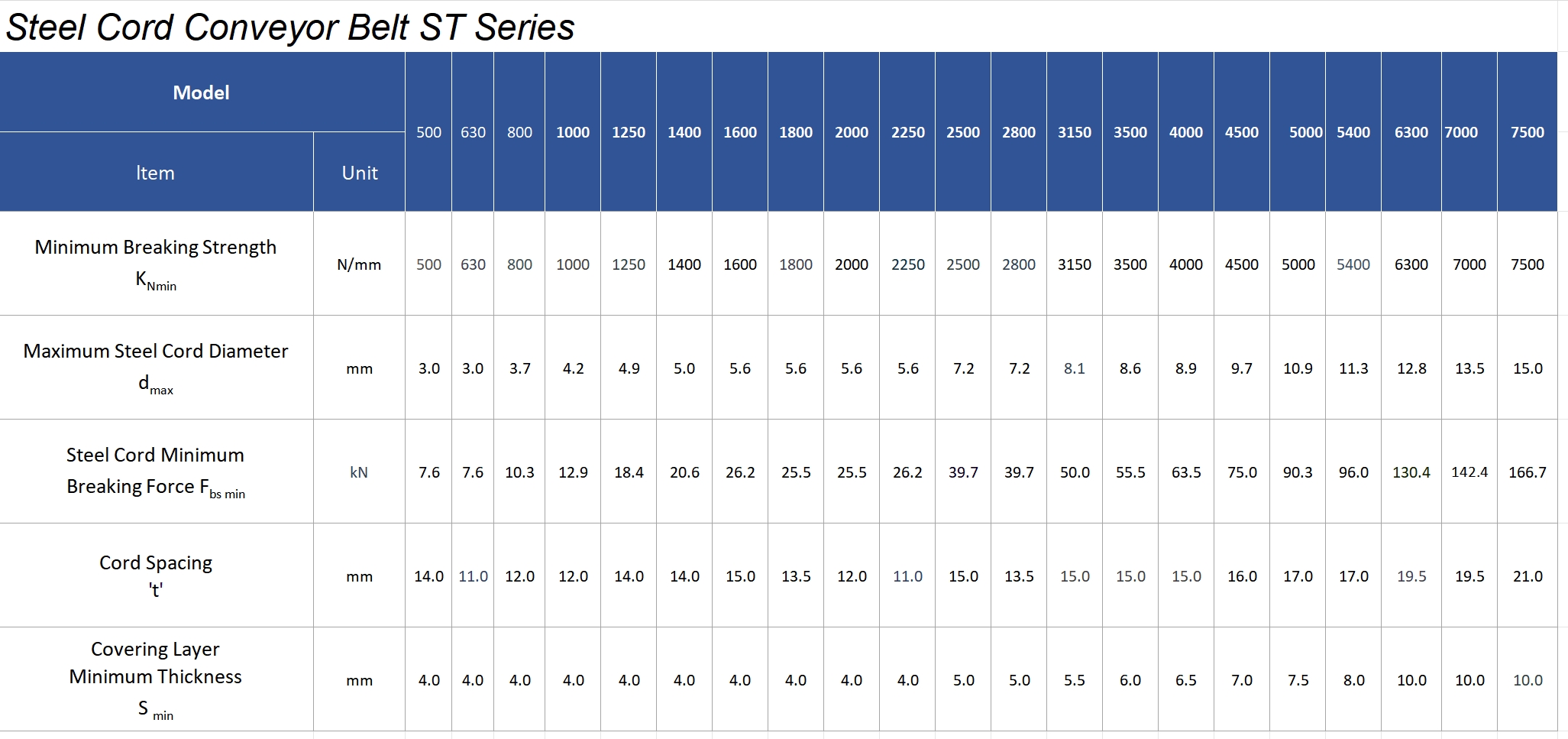

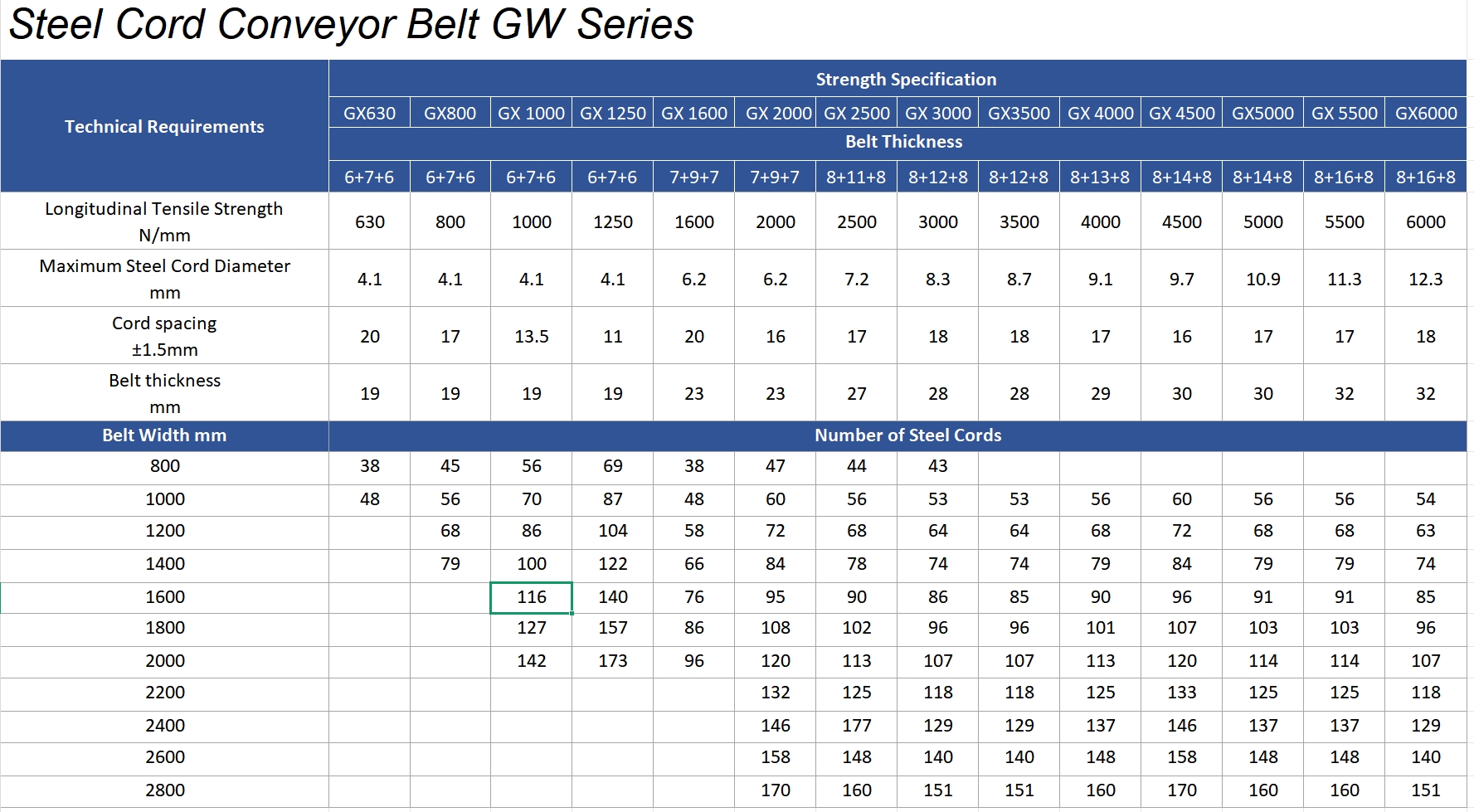

Available Specs

Maximum tensile rating ST10000, maximum belt width 3200mm, maximum single roll weight 80 tons.

Standard

GB/T9770, DIN22131, EN ISO 15236, SANS1366, AS1333

Performance Grades

Heat resistant, FRAS, FRAS & low-temperature resistant, Abrasion & acid resistant, Low Rolling Resistance (LRR)

Breaker Reinforced

NN fabric breaker, metal mesh breaker, aramid breaker

Splice Accessories

Standard splicing kits, preformed splicing kits

Application Areas

Designed for coal mining, ore handling, port terminals, metallurgy, power generation and chemical sectors. It is engineered for long-distance and heavy-duty bulk material conveyance.

Our Edge

Professional Manufacturer

Specialize in R&D & production of impact & tear‑resistant conveyor belts with multiple carcass options.

Wide Industry Coverage

Serve mines, quarries and bulk‑handling terminals for global customers with heavy‑duty conveying solutions.

Custom Technical Support

Provide belt selection, impact‑tear grade consulting, calculation, drawings and on‑site service for sharp‑material impact conditions.

Rigorous Quality Control

Full‑process inspection & batch lab impact‑tear performance testing; test reports available.

Solid R&D Strength

Joint‑research with institutes to develop belts for high‑impact and piercing‑risk bulk‑material conveying conditions.

One‑stop Service

Complete supply, technical after‑sales and full‑export‑process support for heavy‑impact conveying projects.

Qualification Certificate
