Abrasion Resistant Conveyor Belt

Our abrasion resistant conveyor belts are specially formulated to withstand scuffing and tearing generated by bulk materials rubbing and scraping against the rubber cover during transport. They are developed for operations handling highly abrasive bulk solids.

Product Overview

COVER GRADE
	AR‑90	AR‑50	AR‑30	AR‑20
Service Condition	General Abrasion	Heavy Abrasion	Severe Abrasion	Super Abrasion
Normal Range	-20°C~+80°C	-20°C~+80°C	-20°C~+80°C	-20°C~+80°C
Temperature × Duration	70°C × 168Hrs	70°C × 168Hrs	70°C × 168Hrs	70°C × 96Hrs
Tensile Strength (N/mm²)
Variation in percentage of initial value	-20	-20	-25	-25
Minimum value after aging	18	20	22	22
Elongation at break (%)
Variation in percentage of initial value	-25	-25	-30	-30
Minimum value after aging	400	420	450	450
Hardness (IRHD)
Difference before and after aging	±15	±15	±18	±18
Maximum value after aging	78	78	80	80

Product Features

Abrasion Performance Levels

AR‑90: ≤90mm³

AR‑50: ≤50mm³

AR‑30: ≤30mm³

AR‑20: ≤20mm³

Available Core Options

Fabric carcass, Steel cord, Aramid

Application Areas

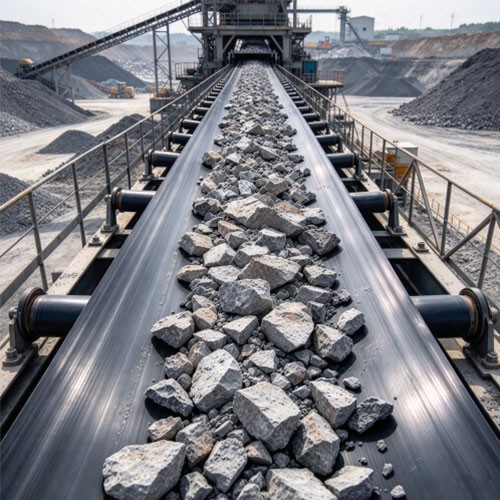

Widely deployed at terminals, mining sites, power plants and chemical plants. Ideal for conveying aggregates, mineral ores and other bulk materials that create heavy surface wear on belting.

Belt Selection Points

- Material type, lump shape and particle size / abrasiveness

- Required abrasion performance level (mm³ loss)

- Conveyor operating speed

- Total conveying distance & tension load

- Drop height and impact level of feeding material

- Ambient working environment & material temperature

Operating Limitations

Standard abrasion resistant belts are not suitable for the below working conditions. Contact our team for customized rubber compound alternatives.

- Long‑term conveying of high‑temperature hot bulk materials

- Conveying materials with strong acid or alkaline properties

- Transporting oily materials or grease‑contaminated bulk solids

- Applications requiring flame‑retardant special performance
